Aftermarket Hydraulic Orbital Motor 3/4 BSP fit DANFOSS Excavator, Loader, Tractor, Dozer
- Regular price
- $587.68
- $587.68
- Regular price
-
- Sale price
- Unit price
- per
| Quantity | Discount | Best Price |
|---|---|---|
| Buy any 3 items | And get 3% off | $570.05 each |
| Buy any 5 items | And get 5% off | $558.30 each |
| Buy any 10 items | And get 10% off | $528.91 each |
Orders Up to13% Off
Secure Payment
Fast Delivery
24/6-Customer Service
Quality Guarantee
Our product technologist will respond within 24 business hours.

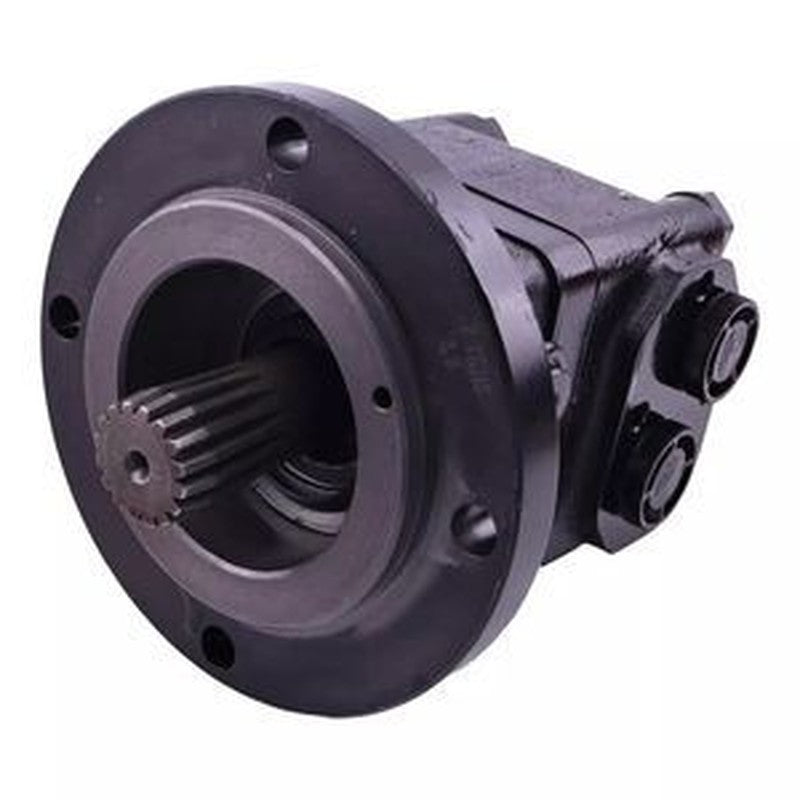

Aftermarket Hydraulic Orbital Motor 3/4 BSP fit DANFOSS Excavator, Loader, Tractor, Dozer
Aftermarket Hydraulic Orbital Motor (MPN: OMTS315-151B3039) for DANFOSS-compatible excavators, loaders, tractors, and dozers. Precision-engineered replacement delivering reliable hydraulic drive performance. 3/4 BSP port configuration with 315cc displacement. Engineered for demanding earthmoving and construction applications requiring consistent torque and flow.
Cross Reference / OEM Numbers
- OMTS315-151B3039
- OMTS315151B3039
- 151B3039
Specifications
| Port Configuration | 3/4 BSP |
| Motor Size | 315 |
| Geometric Displacement | 326.3 cm³ (19.91 in³) |
| Max Speed (Continuous) | 380 rpm |
| Max Speed (Intermittent) | 460 rpm |
| Max Torque (Continuous) | 950 Nm (8410 lbf·in) |
| Max Torque (Intermittent) | 1140 Nm (10090 lbf·in) |
| Max Output Power (Continuous) | 33.5 kW (44.9 hp) |
| Max Output Power (Intermittent) | 40.0 kW (53.6 hp) |
| Max Pressure Drop (Continuous) | 200 bar (2900 psi) |
| Max Pressure Drop (Intermittent) | 240 bar (3480 psi) |
| Max Pressure Drop (Peak) | 280 bar (4060 psi) |
| Max Oil Flow (Continuous) | 125 l/min (33.0 gpm) |
| Max Oil Flow (Intermittent) | 150 l/min (39.6 gpm) |
| Max Starting Pressure (Unloaded Shaft) | 10 bar (145 psi) |
| Min Starting Torque at Max Pressure (Continuous) | 740 Nm (6555 lbf·in) |
| Min Starting Torque at Max Pressure (Intermittent) | 890 Nm (7880 lbf·in) |
| Max Inlet Pressure (Continuous) | 210 bar (3050 psi) |
| Max Inlet Pressure (Intermittent) | 250 bar (3630 psi) |
| Max Inlet Pressure (Peak) | 300 bar (4350 psi) |
| Max Return Pressure with Drain Line (Continuous) | 140 bar (2030 psi) |
| Max Return Pressure with Drain Line (Intermittent) | 175 bar (2540 psi) |
| Max Return Pressure with Drain Line (Peak) | 210 bar (3050 psi) |
Compatible Applications
Fits excavators, loaders, tractors, dozers, and other heavy equipment utilizing DANFOSS Hydraulic Orbital Motor OMTS315-151B3039 as original or equivalent drive unit. Direct replacement for hydraulic motor systems requiring 315cc displacement and 3/4 BSP port connection.
