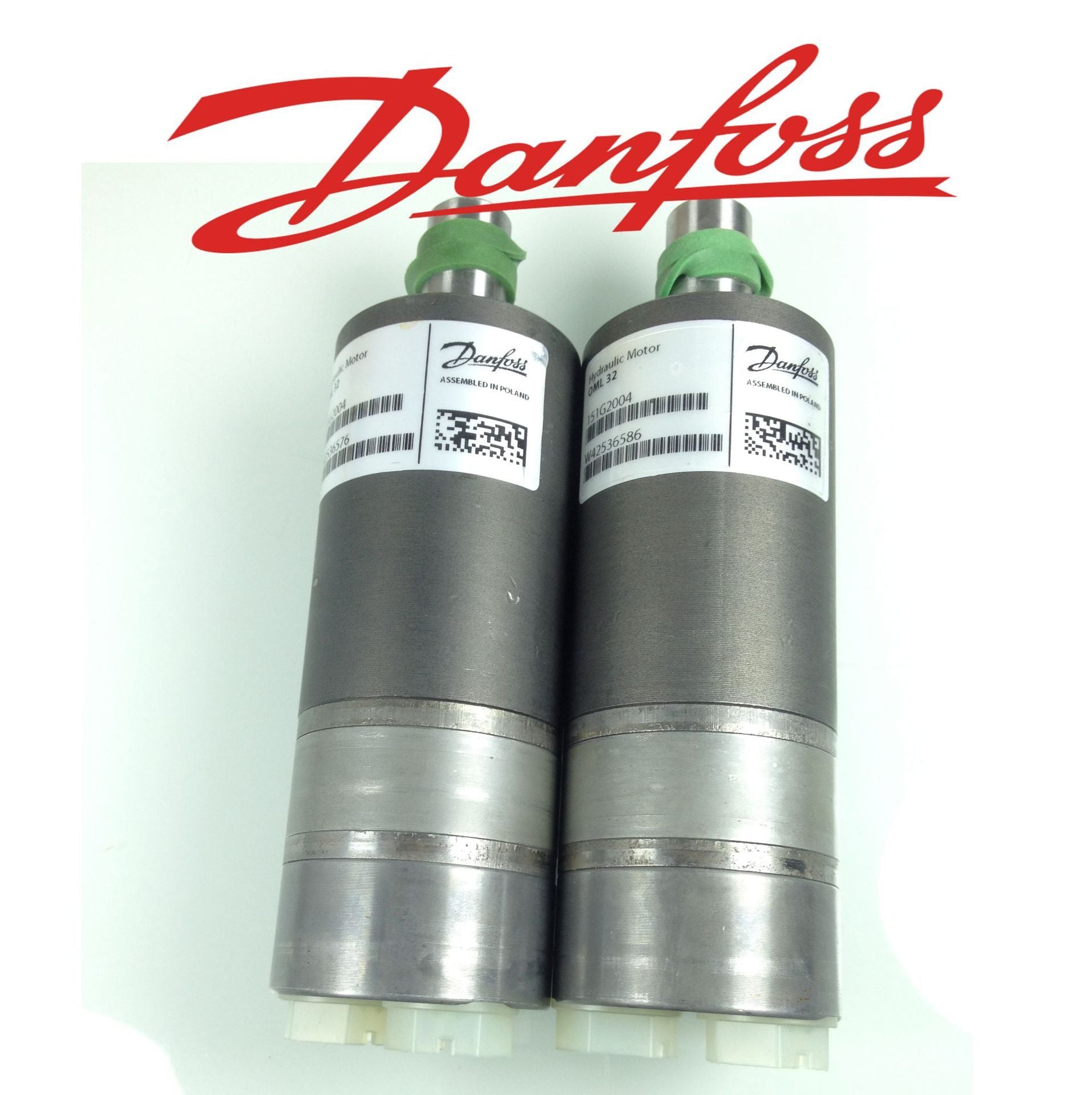

Danfoss High Speed Micro Hydraulic Motor OMM OML Series Danfoss original -Buymachineryparts

★★★★★
0 0 review
SKU: J0400000067017-OML8 151G2001-20-151G
Regular price
$434.20
$434.20
Regular price
Sale price
Free Shipping Today!
Pictures just for reference, goods subject to OEM#
If you are not sure, please send us the model information
规格: OML8 151G2001
扭矩: 20
货号: 151G
Quantity Discount Best Price
Buy any 3 items And get 3% off $302.87 each
Buy any 5 items And get 5% off $296.63 each
Buy any 10 items And get 10% off $281.02 each
Orders Up to13% Off
Apply Now >
Secure Payment
Fast Delivery
24/6-Customer Service
Quality Guarantee
Becoming a business partner get more benefits.
Register
avatar
Need Help?

Our product technologist will respond within 24 business hours.

Warranty Policy

Buymachineryparts always want customers to be satisfied with their
shopping experience, so the return policy is very important to to ensure
their own interests.

We offer 30-day guarantee on receipt of parts.

Shipping Policy

In order to provide better service to our valued customers, we implement
free shipping for all products in the Buymachineryparts shop except for heavy cargo and remote areas

Easy Return Policy

To allow customers to shop more confidently and worry-free, we earnestly promise that if the products are defective, incorrect, or amaged in transit, customers may return them within 30 days after receipt, and we will issue a refund.

Buymachineryparts, your one-stop aftermarket parts online shop!

Welcome to Buymachineryparts, making machinery parts easy to buy worldwide

Overview
Reviews
Q&As
Shipment
Wholesale

Danfoss High Speed Micro Hydraulic Motor OMM OML Series Danfoss original -Buymachineryparts


brand: danfoss/Danfoss
item no: 151G
model: OMM series
structure: gear type
loading type: cycloid motor
working pressure: 20
torque: 20
rated current: 0
rated voltage: 0
rated power: 5.2
rated speed: 1950rpm
speed type: low speed motor
processing customization: no
specifications: OML 8 151 G2001
specifications: OML12.5 151 G2002
specifications: OML 20 151 G2003
specifications: OML 32 151 G2004
specifications: OMM 8 151 G0040
specifications: OMM 20 151 G0002
specifications: OMM 32 151 G0006
specifications: OMM 50 151 G0013


OMM motor shaft extension form:
diameter 16 axis, flat key 5X5X16
diameter 15.875 shaft, flat key 4.8X4.8X19.05
diameter 16.5 shaft, spline B17X14,DIN5482
OMM motor oil port mode:
G3/8, G1/8
9/16-18UNF,3/8-24UNF
rear port G3/8,G1/8
rear ports 9, 16-18UNF,3, 8-24UNF

note:1. The use of the motor is the best industrial and mining choice. The rated industrial and mining industry is 1/3-2/3

2. The motors can be used in series or parallel. When the back pressure exceeds 10MPa during series or parallel connection, an external oil drain must be used to relieve the pressure. It is best to directly communicate the oil drain port with the oil tank.

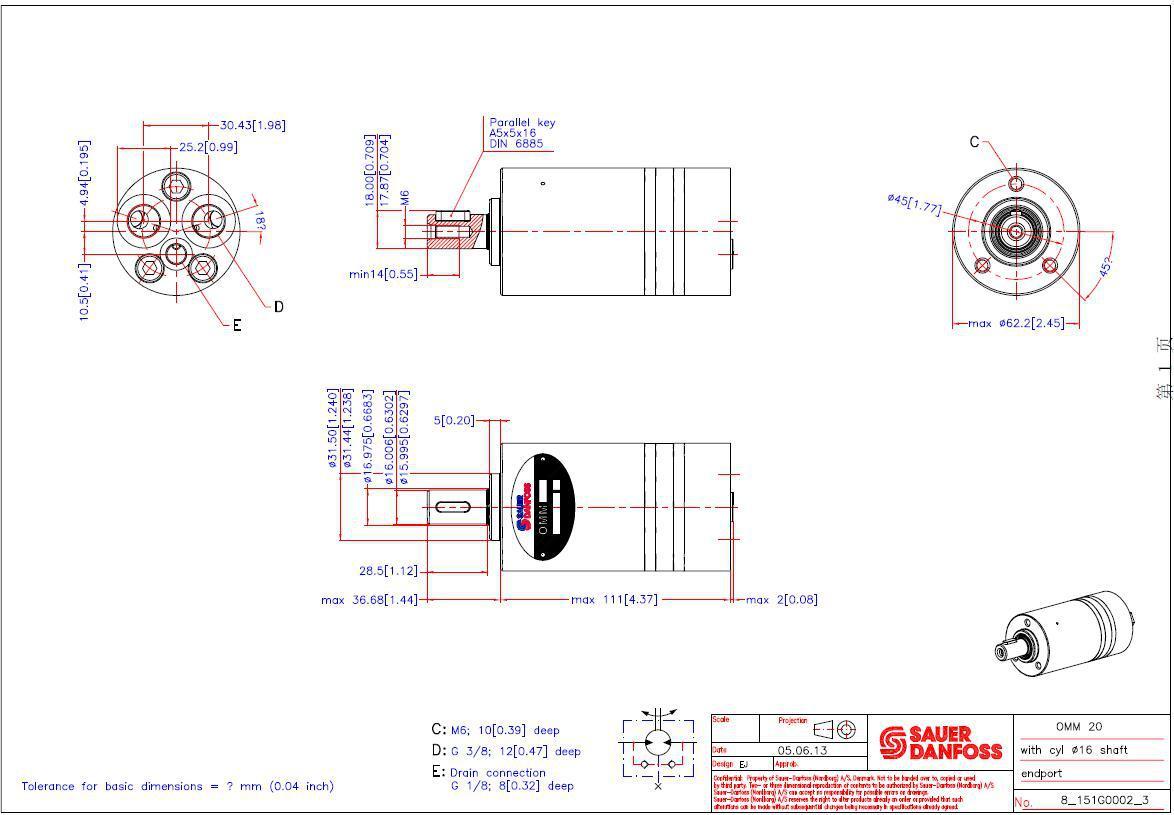

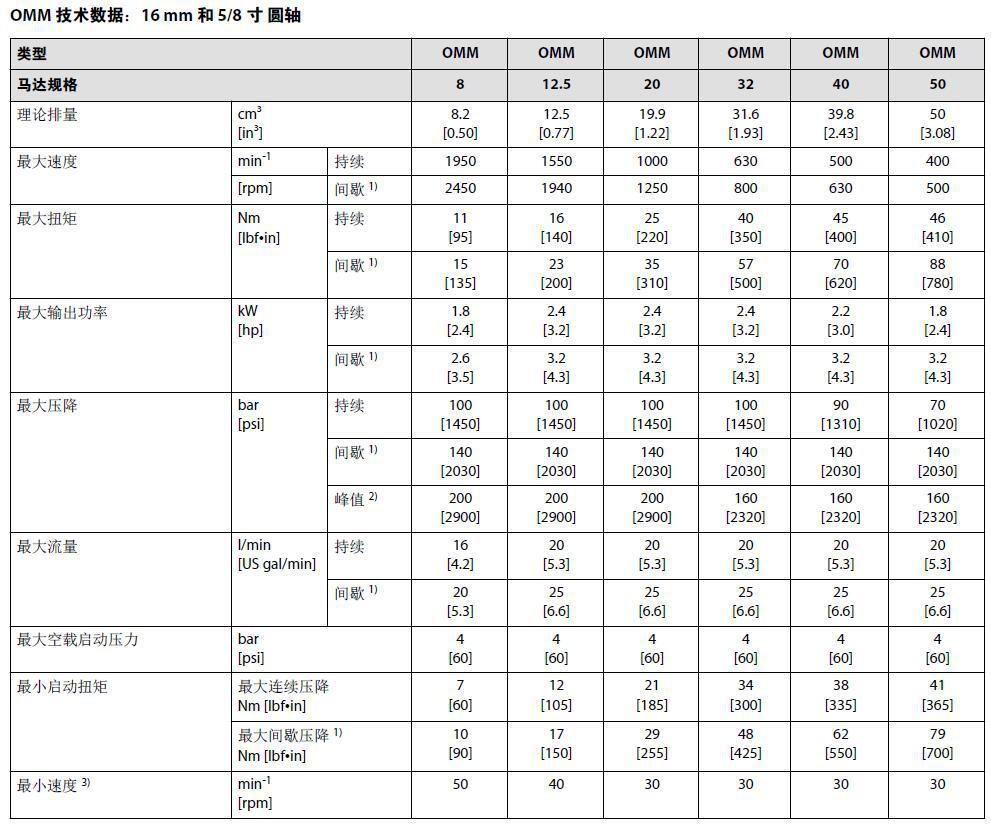

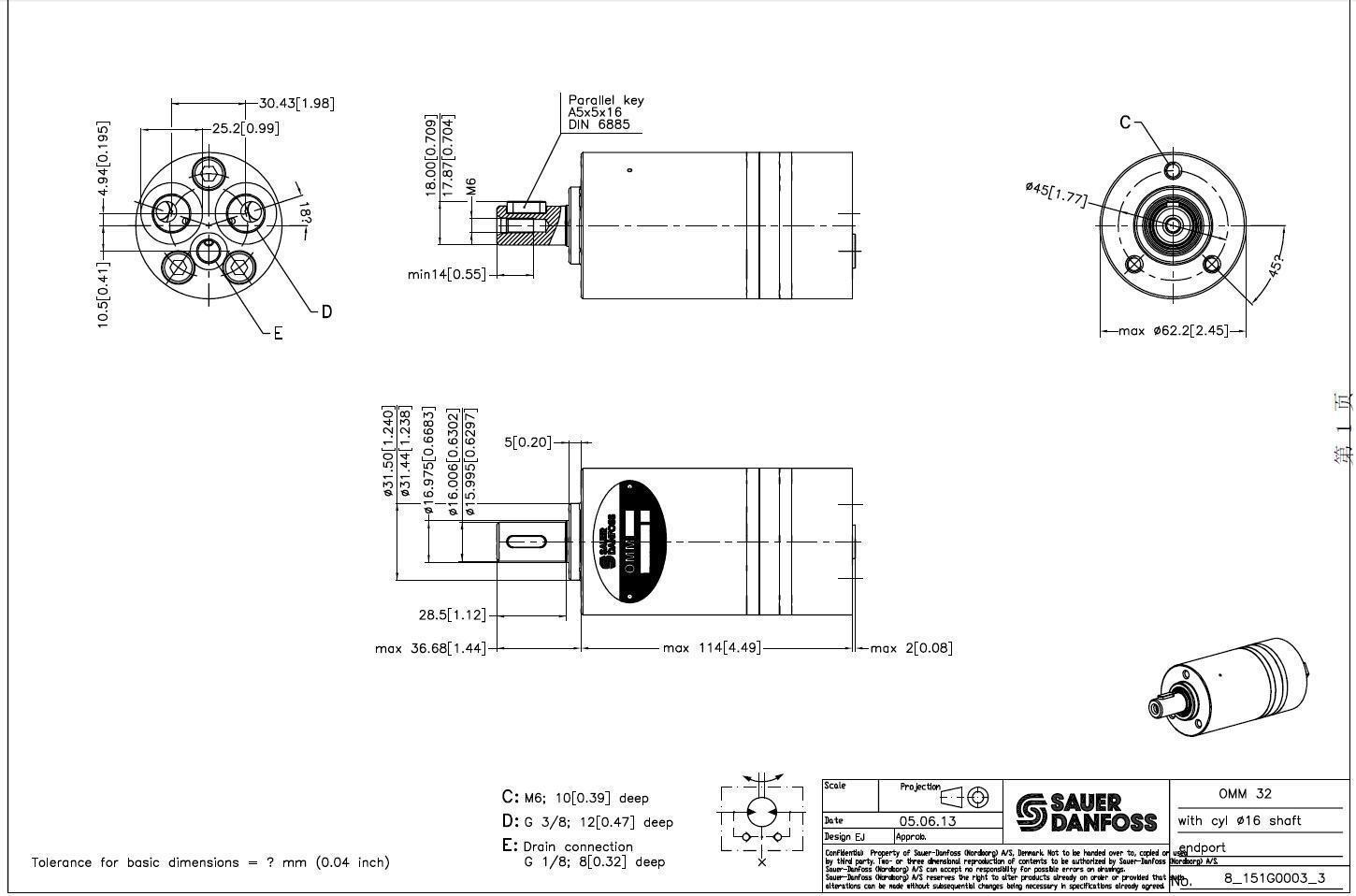

Performance parameters and outline drawing:

displacement ml/r 8 12.5 20 32 40 50
speed r/min continuous 1950 1550 1000 630 500 400
intermittent 2450 1940 1250 800 630 500
torque N.m continuous 11 16 25 40 45 46
intermittent 15 23 35 57 70 88
power kW continuous 1.8 2.4 2.4 2.4 2.2 1.8
intermittent 2.6 3.2 3.2 3.2 3.2 3.2
pressure Mpa continuous 10 10 10 10 9 7
intermittent 14 14 14 14 14 14
flow L/min continuous 16 20 20 20 20 20
intermittent 20 25 25 25 25 25




i2uRg/ikztQlPTSyCDgAIEIYp6ts5q5Lc3rJ

undefined





1) Intermittent operation: A maximum of 10% of the time per minute is allowed to work under this condition.
2) Peak load: A maximum of 1% per minute is allowed to work under this condition.
3) Low-speed operation may cause unsmooth operation.



undefined

undefined
