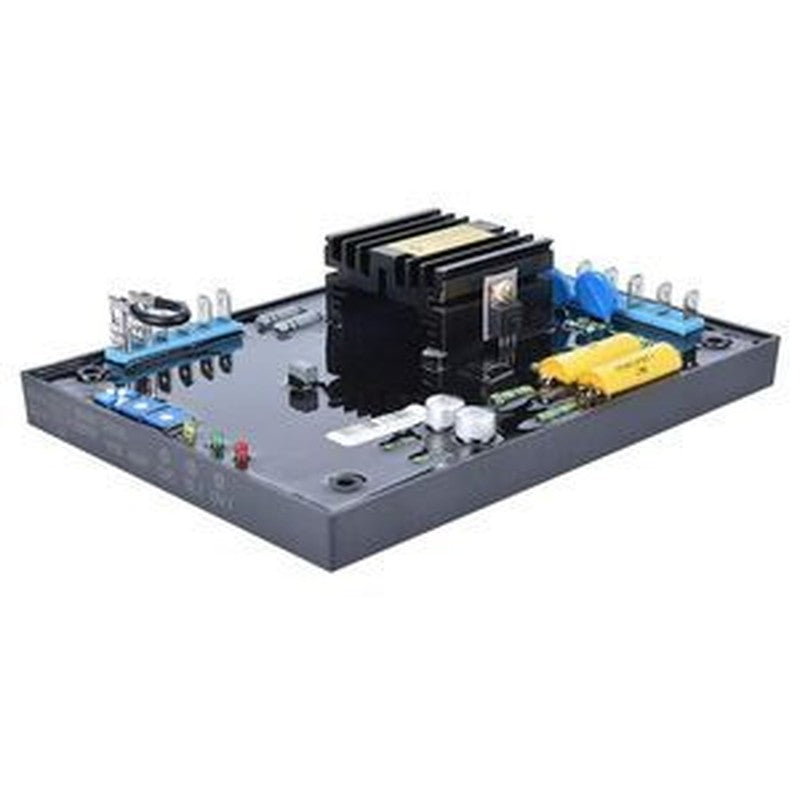

Universal AVR Generator Voltage Regulator 180-250VAC EVC600C
Universal AVR Generator Voltage Regulator (MPN: EVC600C) for diesel and petrol generators. Precision automatic voltage regulation maintains stable output across 180–250VAC single-phase systems. Delivers up to 1000VA at 240VAC with ±1% accuracy and fast 1.5-second response time. Engineered for reliable excitation control in industrial and portable generator applications worldwide.
Specifications
| Specification | Value |
| Output Voltage | Up to 90 VDC @ 220VAC |
| Continuous Current | 8A |
| Maximum Instantaneous Output Current | 10A DC (≤0.5S) |
| Minimum Excitation Winding Resistance | 8Ω |
| Input Voltage (AC) | 180–250VAC, 50/60Hz |
| Power Rating | Up to 1000VA @ 240VAC |
| Detection Voltage (220VAC System) | 180–250VAC, Single Phase, 50/60Hz |
| Detection Voltage (400VAC System) | 350–480VAC, Single Phase, 50/60Hz |
| Power Consumption (Detection) | 5VA |
| Voltage Adjustment Range (220VAC System) | 180–300VAC |
| Voltage Adjustment Range (400VAC System) | 350–480VAC |
| Voltage Regulation Accuracy | ±1% |
| Voltage Drift | <0.05% / °C |
| Response Time | 1.5 seconds |
| Residual Excitation Voltage (Auto-Built) | 5VAC, 25Hz |
| Power Consumption (Excitation) | Up to 40W |
| Current Transformer Rating | 5A Ratio |
| CT Current Transformer Drop | 0–6%, 0.8 Power Factor |
| Operating Temperature Range | −30°C to +80°C |
| Vibration Tolerance (5–26Hz) | 12Gs |
| Vibration Tolerance (27–52Hz) | 0.036 inch amplitude |
| Vibration Tolerance (53–1000Hz) | 5.0Gs |
| Shock Resistance | 20Gs on three orthogonal planes |
| Installation Method | M4 bolts to generator junction box |
