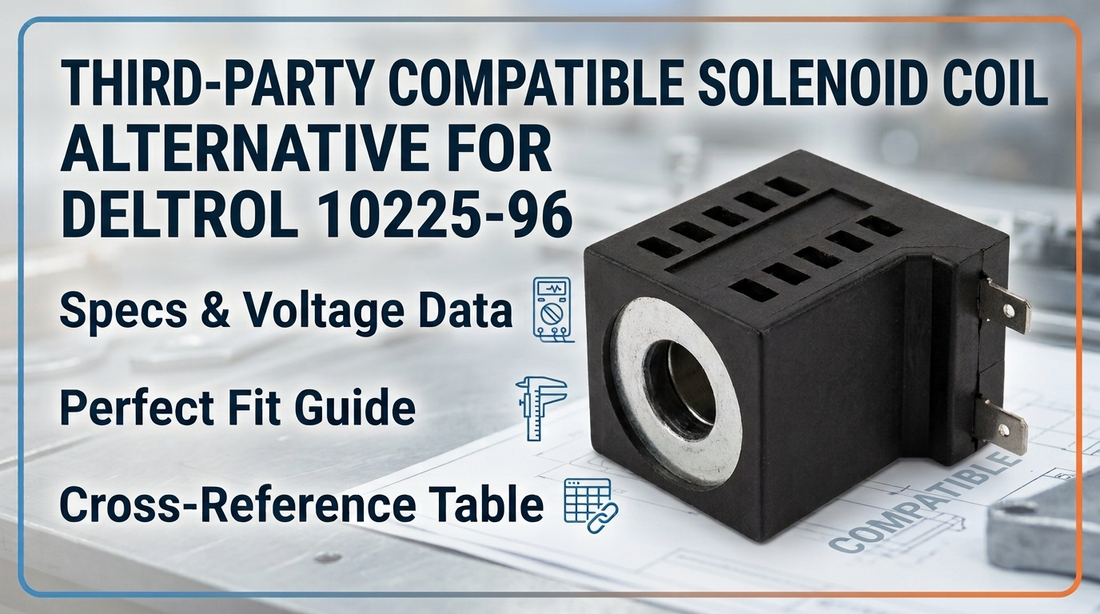

Deltrol 10225-96 Solenoid Coil Replacement: Specs, Fit & Cross-Reference
Your Deltrol Valve Quit? The 12V 16W 10225-96 Solenoid Coil Is Probably the Culprit
Picture this: it's the middle of a job, your hydraulic lift won't budge, and every minute costs you money. Before you call a mechanic or drop $400 on a whole valve assembly — take a look at the little coil on the side. Nine times out of ten, that's the problem, and the fix is cheaper (and faster) than you think.
The Short Version
What Is the Deltrol 10225-96 Solenoid Coil?
Think of it as the "muscle" that tells your hydraulic valve when to open and close. No coil, no movement.
The 10225-96 (also listed as 1022596) is a 12-volt DC, 16-watt solenoid coil built for Deltrol hydraulic solenoid valves. When you flip the switch, this coil electrifies, pulls the valve spool, and — boom — your cylinder moves. When the coil burns out, the signal dies and everything freezes up.
Here's the good news: it's one of the most common Deltrol coils on the market, and a direct-fit replacement is easy to grab. At buymachineryparts we stock the 10225-96 / 1022596 as a true drop-in for the Deltrol 08, 80, 88, and 98 valve stem series — same 1/2" bore, same dual-spade terminals, same 16W rating. No modifications, no guesswork.
Know Before You Buy
12V 16W Solenoid Coil — Key Specs
| Specification | Value |
|---|---|
| Part Numbers | 10225-96, 1022596, 10216-12, 1021612 |
| Voltage | 12V DC |
| Power / Wattage | 16 Watts |
| Resistance | 9.0 Ohms |
| Current Draw | 1.33 Amps |
| Connector | Dual Spade |
| Bore (Hole) Diameter | 1/2 inch |
| Duty Rating | Continuous, up to 115% voltage |
| Max Ambient Temp | 212°F / 100°C |
| Fits Valve Stems | Series 08, 80, 88, 98 |
Will It Fit Mine?
Cross-Reference & Fits List
If you spot any of these on your old part, you're in the right place:
| Listed As | Also Known As | Commonly Found On |
|---|---|---|
| 10225-96 | 1022596 | Deltrol hydraulic solenoid valve |
| 10216-12 | 1021612 | Deltrol 08 / 80 / 88 / 98 stem series |
| Deltrol-style coil | EF-1081 | Hydraulic power unit — lift / dump |
| Universal 12V 16W | 1/2" bore | Snow plows & spreaders (e.g. Hiniker V-plow) |
You'll find this coil on hydraulic power units, lift/dump valves, snow plows, salt spreaders, and all kinds of industrial machinery built around Deltrol fluid-power valves. Just confirm your valve stem series (08, 80, 88, or 98) before you hit "add to cart."
Don't Guess — Check
5 Tell-Tale Signs Your Coil Is Dead
Valve won't shift
No click when powered; the spool stays put and the cylinder just sits there.
Burning smell
That hot, acrid odor drifting off the valve? Classic coil-overheat signal.
Scorching hot
Coil runs way hotter than normal, or trips the breaker the second it's under load.
No continuity
Multimeter reads open (or nowhere near 9.0Ω) across the terminals — it's toast.
Works cold, dies warm
Runs fine at startup, fails after a few minutes — the winding is breaking down.
Cracked or melted
Visible damage on the housing? Don't push your luck — replace it.
DIY-Friendly
How to Swap the 10225-96 Coil in About 10 Minutes
No mechanic required. Grab a basic screwdriver, kill the power, and follow along:
Kill the power
Disconnect the battery or shut off the hydraulic power unit. Never work a live coil — seriously.
Pull the spade leads
Snap a quick photo of the wiring, then slide the dual-spade terminals off the old coil.
Slide off the old coil
Unscrew or unclip it from the valve stem — it pulls straight off the 1/2" bore.
Seat the new one
Push the replacement 10225-96 / 1022596 coil onto the stem until it sits flush.
Reconnect & test
Reattach the leads, restore power, and cycle the valve. You should hear that satisfying click.
Why buymachineryparts
Skip the Dealer Markup — Get the Right Coil
buymachineryparts is a China-based supplier of heavy-duty machinery replacement parts, with a local U.S. warehouse. We carry the 12V 16W Deltrol 10225-96 / 1022596 solenoid coil as a direct-fit alternative to the OEM — built to the same 9.0Ω / 1.33A / dual-spade spec.
Exact Spec Match
12V DC, 16W, 9.0Ω, 1/2" bore, dual spade — verified to fit.
Dealer-Grade Quality
Rated for continuous duty to 115% voltage and 212°F ambient.
Real Human Support
Unsure of your part number? Our team confirms fit before you buy.
Still Curious?
Frequently Asked Questions
Will this 10225-96 coil fit my Deltrol valve?
If your valve uses the Deltrol 08, 80, 88, or 98 stem series with a 1/2" bore and a 12V DC dual-spade coil, absolutely. Match voltage (12V DC), bore (1/2"), and connector (dual spade) and you're good to go.
What's the difference between 10225-96 and 1022596?
Same coil, different formatting. 1022596 is simply the dash-free version of the 10225-96 part number — they're fully cross-referenced and interchangeable.
Can I use a 24V coil instead of 12V?
Please don't. A 24V coil on a 12V system won't pull hard enough, and a 12V coil on 24V will overheat and fry. Always match the voltage exactly.
How do I test the old coil?
Power off, set a multimeter to Ohms, and probe the terminals. A healthy 10225-96 reads about 9.0Ω. An open reading or near-0Ω means it's dead.
Is this an OEM Deltrol part or aftermarket?
buymachineryparts supplies a direct-fit aftermarket replacement engineered to the original 10225-96 specifications — same performance, friendlier price than the dealer.
Get Your Machine Back to Work
Order the 12V 16W Deltrol 10225-96 / 1022596 solenoid coil today.
