Flat Face Hydraulic Quick Couplers: Complete Sizing, Thread & Fitment Guide
A flat face hydraulic quick coupler is a zero-spill coupling in which two flat metal faces seal against each other with a recessed O-ring, to the ISO 16028 standard. This guide shows you how to tell flat face from poppet, how to read body size and thread separately, and which coupler kit fits your loader.
🔧 What "Flat Face" Actually Means

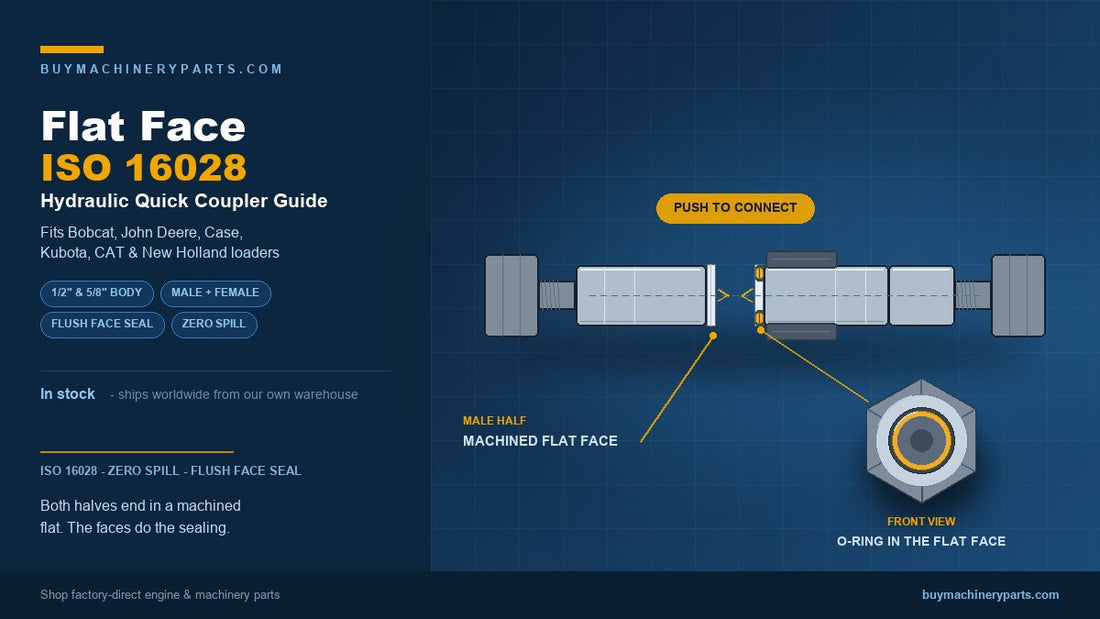

On a flat face coupler, both halves end in a machined flat. When they mate, the two flats touch and a rubber O-ring set into a groove on the face does the sealing. Nothing protrudes, nothing sits in the flow path, and almost no oil escapes when you pull the halves apart.
That last point is the whole reason flat face couplers took over on skid steers. A poppet coupler traps a small volume of oil between the two halves, and every disconnect dumps it on the ground or on your hands. On a machine that swaps attachments several times a day, that adds up to a real contamination problem — grit sticks to the wet face and gets pushed into the hydraulic system on the next connection.
Why it matters commercially: flat face couplers are the OEM fitment on virtually every modern skid steer loader, compact track loader and mini excavator, because ISO 16028 keeps cross-brand contamination low. If your machine came with flat face, stay flat face.
🔍 Flat Face or Poppet? Identify Yours in 10 Seconds
Before you order anything, look straight into the coupler on the machine and the coupler on the attachment. You do not need tools or a manual.
Flat face (left) versus poppet (right): the give-away is what sits in the centre of the bore.
| What you see | Family | Spill on disconnect | Connect under pressure |
|---|---|---|---|
| O-ring sitting in a flat metal face | Flat face — ISO 16028 | Near zero | Usually not — relieve pressure first |
| Ball or cone in the centre of the bore | Poppet — ISO 7241-A/B | Noticeable drip | Often possible |
They do not mix. An ISO 16028 flat face half will not correctly mate with an ISO 7241 poppet half, even when the threads look right and the bodies slide together. Forcing the pair will damage the face and the O-ring. Both halves must be the same standard, in the same nominal size.
📏 Reading the Size: Body Diameter and Thread Are Two Separate Things
This is where most wrong orders come from. "1/2 inch coupler" tells you nothing on its own. Two numbers matter, and they are independent.
-
Body size — the diameter of the coupling body, which sets flow capacity.
-
Thread / port size — how it attaches to the hose or port. #8 JIC, 5/8" SAE, 3/4" NPT and 1/2" BSP are different ports.
| Body size | Approx. flow | Common port threads | Usually found on |
|---|---|---|---|
| 1/2" | up to ~12 GPM | #8 JIC, 1/2" BSP | Compact skid steers, mini excavators |
| 5/8" | up to ~20 GPM | #10 JIC, 5/8" SAE | Full-size skid steers, compact loaders |
| 3/4" | up to ~30 GPM | #12 JIC, 3/4" NPT | Larger loaders, excavators |
| 1" | up to ~50 GPM | #16 JIC | High-flow attachment circuits |
Flow figures are typical working ranges for each body size, not a rating for a specific brand. Always confirm against your machine's auxiliary hydraulic specification.
🚜 Fitment Reference by Machine Family
These are the families we ship most, with the coupler styles they commonly run. Use it as a starting point, then confirm the OEM number on the part you are replacing.
| Machine family | Typical style | Common thread | Browse |
|---|---|---|---|
|
Bobcat skid steer T140–T870, S130–S205, 863 |
Flat face | #10 JIC / 5/8" SAE | Bobcat parts → |
|
John Deere 318E–333E, 110–332, 310G/SG |
Flat face | #10 JIC | John Deere parts → |
|
Case / New Holland 410–465, 40XT–75XT, LS140–LS190 |
Flat face | #10 JIC / 5/8" SAE | Case parts → |
|
Kubota SVL65-2 – SVL97-2 |
Flat face | #10 JIC | Kubota parts → |
|
Caterpillar 247–299C, 257, 277 |
Flat face | #10 JIC | CAT parts → |
Match the machine family, then confirm the OEM number before ordering.
🔢 OEM Part Number Cross-Reference
The fastest way to get the right coupler is to read the number off the old one. Here are the references we see most often on skid steer and compact loader attachment circuits.
| OEM reference | Typically fits | Buy |
|---|---|---|
| 7246802 / 7246799 | Bobcat T140–T870, S130–S205, A220/A300/A770 | Coupler set 7246802 / 7246799 → |
| 7246795 / 7246781 | Bobcat skid steer loaders | Male + female coupler kit → |
| AT406474 / AT406475 | John Deere 318E–333E | Coupler kit AT406474 / AT406475 → |
| AT312470 / KV14216 | John Deere 110–332, 310G/310SG, 320D, 318D | Coupler kit AT312470 / KV14216 → |
| 47396760 / 47396761 | Case compact track & skid steer loaders | Case coupler kit → |
| 6679837 / 6680018 | Bobcat T140–T300 | Bobcat coupler kit → |
| 153-2994 | Caterpillar 247, 257, 277, 287, 299C | CAT 153-2994 coupler → |
| V0631-77240 | Kubota SVL65-2, SVL75-2/3, SVL95-2, SVL97-2 | Kubota coupler kit V0631-77240 → |
Can't find your number? Browse the full hydraulic quick coupler range — we stock flat face, ISO 7241-B, high-pressure and 90° body styles.
⚠️ Coupler Won't Connect? Six Checks in Order
Nine times out of ten the coupler is fine and the problem is trapped pressure. Work through these in order and stop at the first check that fails.
Residual pressure is the number one cause — relieve it before you touch anything else.
-
Relieve residual pressure. Lower the attachment, shut the engine down, turn the key back to RUN so the circuit still has power, release the park brake, then work the auxiliary control both ways. An attachment sitting in the sun can build pressure on its own.
-
Wipe both flat faces. Ground grit on a flat face scores the O-ring on the very first cycle. Use a clean, lint-free cloth.
-
Inspect the face and O-ring. A nicked, cut or flattened O-ring means the coupler half needs replacing, not resealing. A worn seat cannot be fixed by tightening anything.
-
Check the sleeve and lock ring. If the sleeve will not pull back smoothly by hand, there is still pressure in the line or the mechanism is damaged.
-
Confirm both halves are the same standard. ISO 16028 will not mate with ISO 7241, and similar-looking flat face couplers are not automatically a compatible pair.
-
Check flow rating and thread. A 1/2" body with #10 JIC thread is not interchangeable with a 5/8" SAE set even if the bodies look close in size. Match the thread, not the width.
Safety: never force a coupler together, and never crack a fitting on a pressurised line. If a coupler will not go by hand, there is pressure behind it. Releasing it properly takes two minutes; injected hydraulic oil is an emergency room visit.
🛠️ Installation: Getting It Right the First Time
-
Park on level ground, lower the attachment and relieve system pressure.
-
Clean the area around both fittings before opening anything. Dust introduced here ends up in the pump.
-
Remove the old half and check the port thread against the new part. Hold them side by side before applying sealant.
-
Use new sealing washers or the correct thread sealant for the port type. Do not wrap JIC or SAE ports in PTFE tape — these seal on the flare or the O-ring, not on the threads.
-
Torque to spec. Overtightening distorts the body and is a common cause of a new coupler weeping within a week.
-
Cycle the attachment through its full range several times, then re-check every joint for weeping.
❌ Five Mistakes That Kill Couplers
| Mistake | What it costs you |
|---|---|
| Forcing a coupler that will not seat | Scored face and a damaged O-ring groove — the half is scrap |
| Leaving couplers uncapped on the shelf | Grit packed into the face gets pushed straight into the system |
| Mixing flat face and poppet families | Partial engagement, restricted flow, overheated oil |
| Buying by body size only, ignoring thread | Part arrives, does not fit, machine is down another week |
| Cracking a fitting to bleed pressure by hand | High-pressure fluid injection injury — a genuine medical emergency |
❓ Frequently Asked Questions
How do I know if my coupler is flat face or poppet?
Look straight into the coupler. If you see a rubber O-ring sitting in a flat metal face, it is flat face (ISO 16028). If you see a ball or a cone in the centre of the bore, it is a poppet coupler (ISO 7241-A/B). This takes about ten seconds per half.
Why will my flat face coupler not connect even with the engine off?
Residual pressure is trapped in the attachment side, not the machine side. Shut the engine down, turn the key to RUN so the circuit has power, release the park brake and cycle the auxiliary control both ways. An attachment left in the sun will build pressure on its own as the oil expands.
Can I use a 1/2" coupler with a 5/8" hose?
Not directly — body size and port thread are separate dimensions. A 1/2" body usually carries a #8 JIC or 1/2" BSP port, while 5/8" bodies typically use #10 JIC or 5/8" SAE. You need the body size that matches the flow requirement and the thread that matches your hose end, and those are chosen independently.
Do flat face couplers leak when disconnected?
Almost nothing escapes. Because both valves sit flush with the mating face, there is no trapped volume of oil between the halves, which is why flat face is the standard choice for zero-spill and low-contamination applications. This is the main advantage over poppet couplers.
Can I replace just one half of a coupler pair?
Yes, provided the replacement is the same standard and the same nominal body size as the half staying on the machine. Wholesale or fleet buyers often take complete male and female kits so both halves are replaced together and there is no mismatch question. We stock complete kits and individual halves.
Do you supply to workshops and fleets in bulk?
Yes. Coupler kits are a common wholesale line because they are a consumable on machines that change attachments daily. See our wholesale terms or contact us with your model list and quantities for pricing and stock confirmation.
🛒 Related Parts
Male + Female Hydraulic Coupler Kit — Bobcat Skid Steer (7246795 / 7246781)
Complete flat face pair for Bobcat skid steer loaders. Replaces 7246795 and 7246781.
Coupler Kit 47396760 / 47396761 — Case Compact Track & Skid Steer
Flat face male and female couplers for Case compact track and skid steer loaders.
Coupler Kit V0631-77240 — Kubota SVL65-2 to SVL97-2
Direct replacement flat face coupler kit for Kubota compact track loaders.
Browse the full range
Hydraulic Quick Couplers · Hydraulic Fittings · Hydraulic Hose · US Stock — ready to ship
Not sure which coupler you need?
Send us the OEM number stamped on your old coupler, or a photo of the face, along with your machine model and serial. We will confirm the correct kit and current stock before you order.
